What is Device Library​

The WEDA Device Library provides a simplified hardware abstraction layer for Python and C# applications to streamline device initialization and data exchange. By unifying different hardware operations under a single interface, developers can focus on application logic and system integration without worrying about low-level details. Whether gathering sensor data or controlling various devices, all interactions are handled consistently to emphasize clear architecture relationships and efficient development.

Advantech Container Catalog​

Advantech provides an x86 EdgeSync Base Container image with a built-in Device Library. This section explains how to work with the Device Library and the container image.

Demo Scenario​

A software developer needs to get the CPU temperature on a device. Using Advantech's device library container, they can quickly build and deploy a Python application for this purpose. This approach allows the developer to focus on application logic, leveraging the pre-built device access libraries within the container.

Before you start​

To follow this tutorial effectively, familiarity with the following technologies and concepts will be helpful:

  • Basic Docker knowledge: Understanding of containers, images, and Docker Compose
  • Command-line proficiency: Ability to navigate Linux terminal and execute bash commands
  • Python fundamentals: Basic understanding of Python syntax and function definitions

No specialized knowledge of hardware interfaces is required, as the Device Library abstracts these details for you.

If you need to strengthen your knowledge in these areas, here are some helpful resources.

Run the container​

  1. Visit the x86 EdgeSync Base Container website to review container details, and system requirements.

  2. Download the required Docker Compose file and build script from GitHub

  3. Place both files (build.sh and docker-compose.yml) in the same directory on your device.

  4. Run the build script with the following commands:

    chmod +x build.sh
    sudo ./build.sh

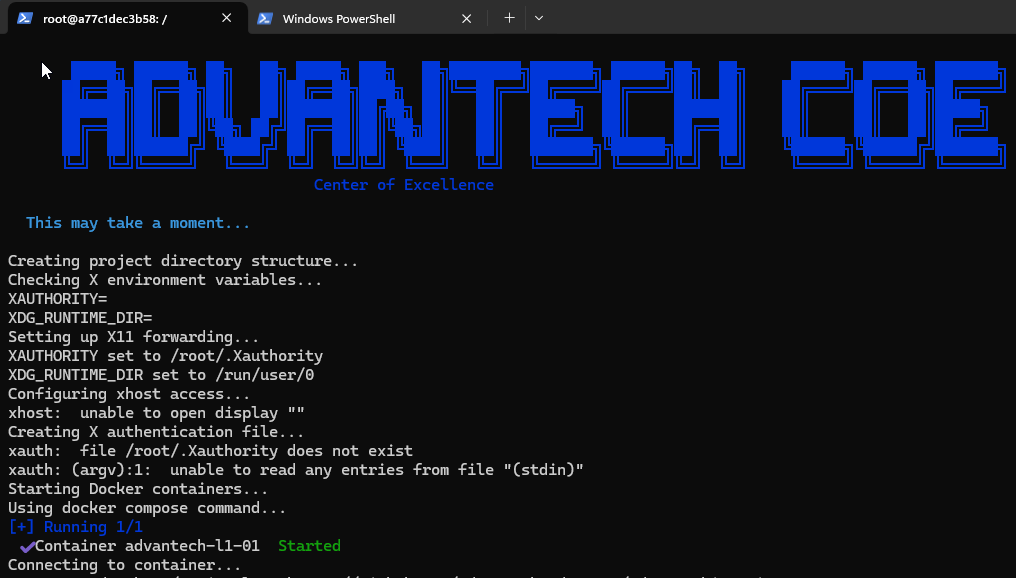

  5. After running build.sh, you will enter the container with a bash UI After the build.sh

  6. (Option) You can download the test sample code and run the test code in the container

    git clone https://github.com/Advantech-EdgeSync/advantechiot.git
    cd advantechiot/tests
    python3 -m unittest -v test_advantech_edge

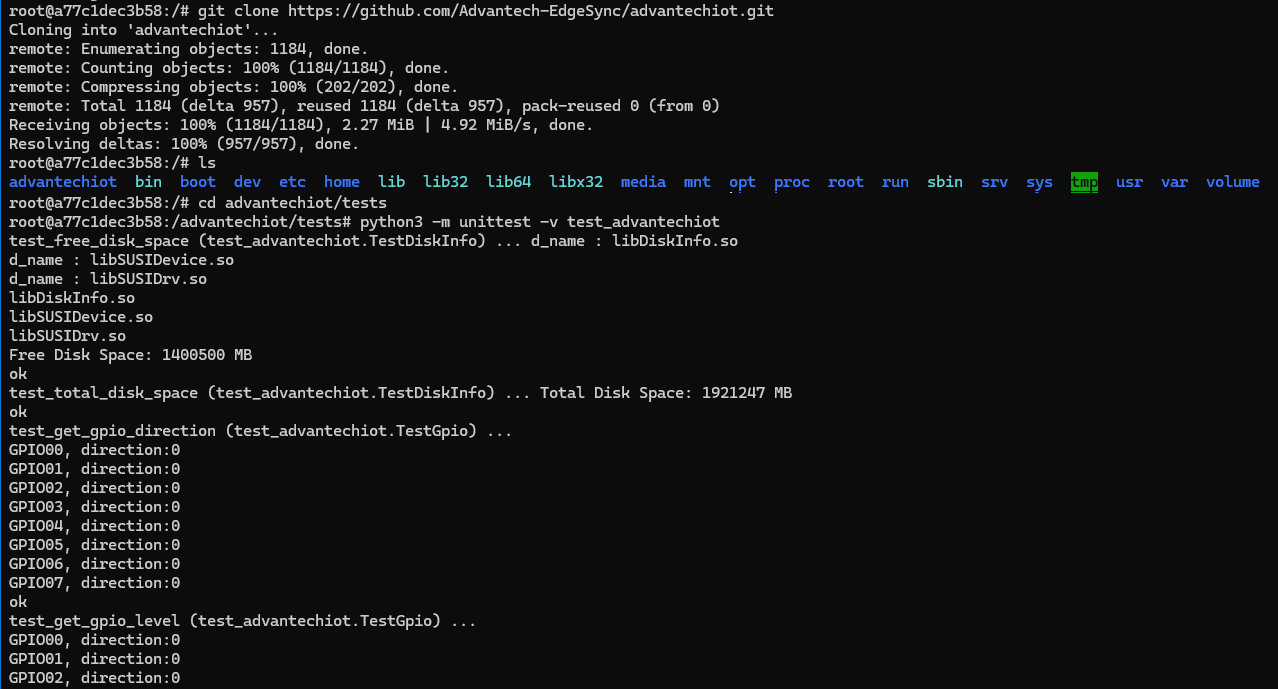

    Run the test code

Build and run your own application​

Back to our demo scenario

  1. On your device, create a new folder

    mkdir myContainer
    cd myContainer

  2. Create a file show_hw_info.py under myContainer folder

    import advantech     #import the library

    def print_board_info(device):
       print("=== Motherboard Information ===")
       print(f"Board Manufacturer: {device.platform_information.manufacturer}")
       print(f"Board Name: {device.platform_information.motherboard_name}")
       print(f"BIOS Revision: {device.platform_information.bios_revision}")
       print(f"Library Version: {device.platform_information.library_version}")
       print()

    def print_voltages(device):
       print("=== Voltage Sources ===")
       for src in device.onboard_sensors.voltage_sources:
          voltage = device.onboard_sensors.get_voltage(src)
          print(f"{src}: {voltage} V")
       print()

    def print_temperatures(device):
       print("=== Temperature Sources ===")
       for src in device.onboard_sensors.temperature_sources:
          temp = device.onboard_sensors.get_temperature(src)
          print(f"{src}: {temp} °C")
       print()

    def main():
       device = advantech.edge.Device()
       print_board_info(device)
       print_voltages(device)
       print_temperatures(device)

    if __name__ == "__main__":
       main()

  3. Create your docker file under myContainer folder

    #Replace the tag, visit the https://catalog.advantech.com/en-us/containers/x-edgesync-base-container/tags
    FROM edgesync.azurecr.io/advantech/x-edgesync-base-container:1.0.0-Ubuntu22.04-x86

    RUN mkdir -p /app/Demo

    RUN pip install advantech-edge

    COPY ./show_hw_info.py /app/Demo

  4. Build your own container

    docker build -t mycontainer:V1.0.0 .

  5. Create your own docker-compose.yml under myContainer folder

    # Copy the base file from here: https://github.com/Advantech-EdgeSync-Containers/X86-GPU_Passthrough-EdgeSync-SDK/blob/main/l1-01/docker-compose.yml
    # Change the image to your previous step image name
    # All the bind volumes can't be modified or removed.
    services:
    advantech:
       image: mycontainer:V1.0.0
       container_name: myContainerDemo
       privileged: true
       volumes:
          - type: bind
          source: /opt/Advantech/susi/service/
          target: /opt/Advantech/susi/service/
          read_only: true
          - type: bind
          source: /etc/Advantech/susi/service/
          target: /etc/Advantech/susi/service/
          read_only: true
          - type: bind
          source: /usr/lib/x86_64-linux-gnu/libjansson.so.4
          target: /usr/lib/x86_64-linux-gnu/libjansson.so.4
          read_only: true
          - type: bind
          source: /usr/lib/libjansson.so.4
          target: /usr/lib/libjansson.so.4
          read_only: true
          - type: bind
          source: /usr/lib/libjansson.so
          target: /usr/lib/libjansson.so
          read_only: true
          - type: bind
          source: /usr/lib/libSusiIoT.so
          target: /usr/lib/libSusiIoT.so
          read_only: true
          - type: bind
          source: /usr/lib/libSUSIDevice.so.1
          target: /usr/lib/libSUSIDevice.so.1
          read_only: true
          - type: bind
          source: /usr/lib/libSUSIDevice.so
          target: /usr/lib/libSUSIDevice.so
          read_only: true
          - type: bind
          source: /usr/lib/libSUSIAI.so.1
          target: /usr/lib/libSUSIAI.so.1
          read_only: true
          - type: bind
          source: /usr/lib/libSUSIAI.so
          target: /usr/lib/libSUSIAI.so
          read_only: true
          - type: bind
          source: /usr/lib/libSUSI-4.00.so.1adv
          target: /usr/lib/libSUSI-4.00.so.1
          read_only: true
          - type: bind
          source: /usr/lib/libSUSI-4.00.so
          target: /usr/lib/libSUSI-4.00.so
          read_only: true
          - type: bind
          source: /usr/lib/libSUSI-3.02.so.1
          target: /usr/lib/libSUSI-3.02.so.1
          read_only: true
          - type: bind
          source: /usr/lib/libSUSI-3.02.so
          target: /usr/lib/libSUSI-3.02.so
          read_only: true
          - type: bind
          source: /usr/lib/libEApi.so.1
          target: /usr/lib/libEApi.so.1
          read_only: true
          - type: bind
          source: /usr/lib/libEApi.so
          target: /usr/lib/libEApi.so
          read_only: true
          - type: bind
          source: /usr/lib/Advantech
          target: /usr/lib/Advantech
          read_only: true
       tty: true
       stdin_open: true
       command: bash

  6. The final folder should be like this.

    advantech@advantech:~/myContainer$ ls
    docker-compose.yml  Dockerfile  show_hw_info.py

  7. Testing the application, make sure you are in the myContainer directory

    docker compose up -d
    docker exec -it myContainerDemo bash

  8. In the container, execute the application

    cd app/Demo/
    python3 show_hw_info.py

    Sample result:

    === Motherboard Information ===
    Board Manufacturer: Advantech
    Board Name: AIMB-592
    BIOS Revision: V1.10
    Library Version: 4.2.24179

    === Voltage Sources ===
    +VDDCR_CPU: 1.1 V
    +VDDCR_SOC: 1.03 V
    +VIN: 12.22 V
    +V5SB: 5.04 V
    +VBAT: 3.06 V

    === Temperature Sources ===
    CPU Temperature: 51.9 °C
    System0 Temperature: 46.2 °C
    System1 Temperature: 46.7 °C

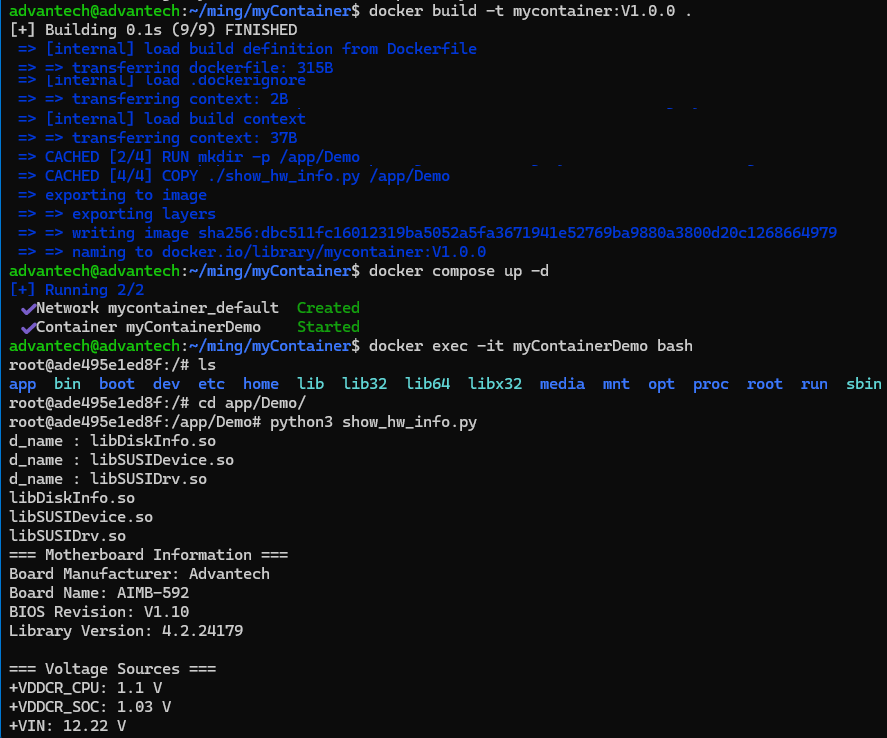

Run the application
